Triple sonar imaging for serious anglers: Traditional CHIRP, DownVü, and SideVü. See fish and underwater structure with crisp detail.

Key Features

Triple sonar modes:
• High‑Wide CHIRP traditional sonar — clear fish arches
• CHIRP DownVü — photo‑like view below boat
• CHIRP SideVü — imaging off both sides of hull

Power output: 250 W Traditional; 350 W each for DownVü & SideVü (1 050 W total)

Imaging depth: up to ~800 ft (traditional); up to ~500 ft (DownVü & SideVü)

12‑pin connector: Supports wide range of Garmin fishfinders/chartplotters

Built‑in sensors: Depth and water temperature feedback

Mounting flexibility: Comes with transom mount and trolling motor mount hardware — ideal for both stern and trolling motor installations.

⚙️ Specs (Highlights)

Frequencies:
• Traditional CHIRP High‑Wide: 150–240 kHz
• DownVü & SideVü CHIRP: 455 kHz & 800 kHz

Beamwidth: Traditional ~24°–16°; ClearVü/SideVü narrow & deep imaging beams
Cable Length: ~20 ft (6 m)
Transom Compatibility: 0°–70° deadrise/transom mounting angles

What’s in the Box

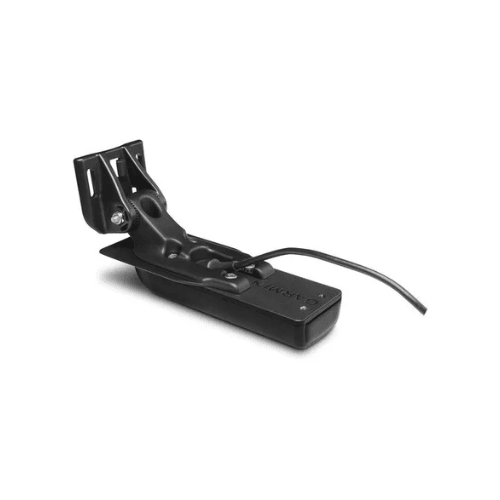

GT52HW‑TM transducer

Transom & trolling motor mount hardware

Installation guide
